柴油車煙度計

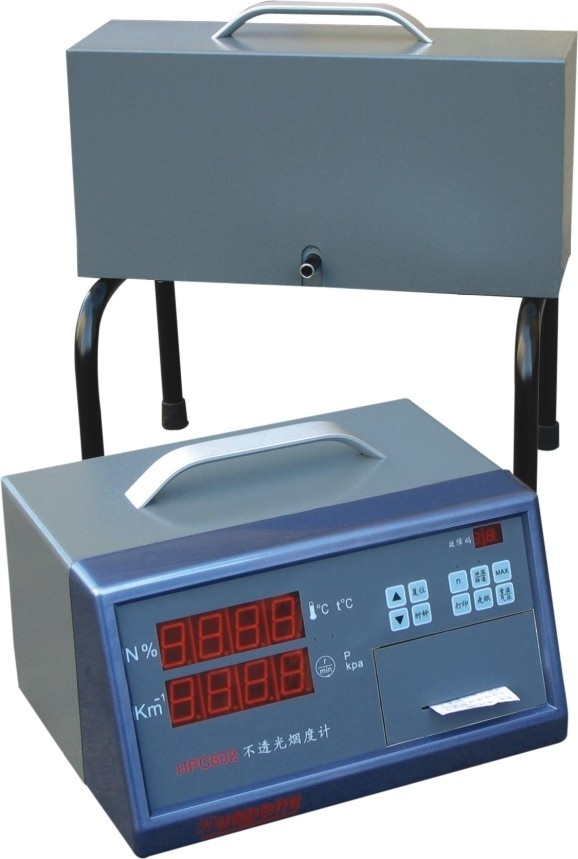

HPC602不透光煙度計


主要功能特點:

分體式結構設計,操作更方便,數據更精確;
采用分流式取樣技術、柴油機加速、減速和穩速時均可測量煙度;
數據自動線性化處理,可顯示不透光度N、光吸收系數K和對應濾紙式煙度值SF;
高亮度數碼顯示;
采用“空氣幕”技術保護光學系統免受污染;
檢測室自動恒溫控制,可防冷凝而影響測試精度;
附自動時間顯示;可選配轉速測量和油溫測量;
出現故障自動診斷顯示所在單元;
配內置打印機或藍牙、RS232、模擬接口;
符合ISO11614和GB3847-2018技術要求。

主要技術參數:

測量范圍       不透光度N:  0~99.9%(相當煙度值0~10FSN)
光吸收系數K:0-16.06m-1
轉速:0-9990rpm     油溫: 0-150℃
示值誤差       ≤±2%(測量值)
穩 定 性        自動校零,量矩漂移≤±1%/4h
重 復 性        重復誤差≤±1%
分 辨 率        N為0.1%, K為0.01m-1 ,轉速為10rpm,油溫為0.1℃
輸出方式       數字直讀顯示,可附打印機打印煙濃度(暗度)最大值,測試
時間、日期等??筛浇涌谂c計算機聯網
測量室溫度    70℃(自動恒溫),當溫度誤差≥±10%時,溫度及錯誤指示燈亮
環境條件        溫度-5~50℃,相對濕度≤90%
電      源        AC100-240V 50/60Hz 消耗功率150VA
外形尺寸        控制單元 240mm(長)×310mm(寬)×170mm(高)
(含支架)     測量單元 130mm(長)×400mm(寬)×390mm(高)
重      量         控制單元  4k
測量單元  5kg

Main Features:

◆Separated structural design, operation more convenient and more accurate data.
◆Adopted a triage-type sampling technique, diesel engine acceleration, deceleration, and steady speed can be measured when the smoke;
◆Linear automatic data processing, can be displayed opacity degrees N, light absorption coefficient K and the corresponding value of filter paper-type smoke SF;
◆High-brightness digital display;
◆Use of "air curtain" technology to protect the optical system from contamination;
◆Automatic detection of room temperature control, anti-condensation can affect the test accuracy;
◆Automatically attached to the time display; optional speed measurement and oil temperature measurement
◆Show where the failure of automatic diagnosis unit;
◆Equipped with built-in printer (or Bluetooth / RS232 interface);
◆In line with ISO11614 and GB3847-2005 technical requirements.

Main technical parameters:

Test ScopeNo light transmission N:0100% (equivalent to smoke value 0~10FSN)

Light absorption coefficient K:016.06 m-1

RPM09990rpm OIL TEMP: 0150℃

Indication error: ≤±2% ( measured value)

Stability:moment drift≤±1%/4H

Repeatability ≤±1%

Resolution: N:0.1%, K:0.01m-1 ,RPM:10rpm, OIL TEMP:0.1℃

Output mode:digital direct reading, can be attached to the printer to print the smoke concentration ( darkness) maximum value, test time, date. Can interface with computer networking

The measurement chamber temperature:

70 ℃ (automatic), when the temperature error of ± 10%, temperature and error indicator light

And-use temperature: -5~50°C, Relative humidity: 90%

Power: AC100~240V 50/60Hz or DC12V, Power consumption: 150VA

Dimensions: control unit: 240(L)×310(W)×170 (H)mm

( including bracket) measuring unit: 130(L)×400(W)×390(H)mm

Control unit: 4kg

Measuring unit: 5kg
