首頁 產品中心 摩托車分析儀

PRODUCTS CENTER
摩托車分析儀

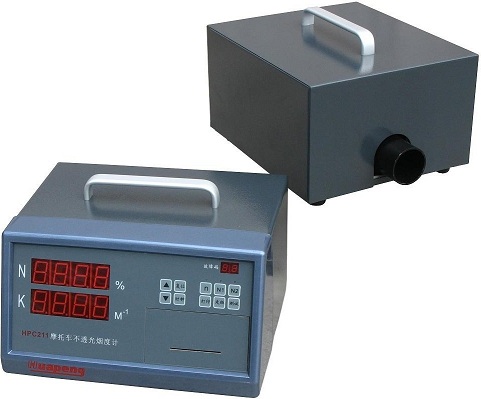

HPC211摩托車煙度計


主要功能特點:
分體式結構設計,操作方便,按新國標GBl9758-2005技術要求研制;
采用內置全流式取樣技術,專用測量摩托車急加速、怠速工況時的煙度;
高亮度數碼顯示,進口關鍵零部件組裝而成;
采用全流式耐高溫的特殊取樣探頭,采樣穩定、精確、方便;
開機預熱時間10分鐘,并自動調零;
數據自動線性化處理,可顯示不透光度N、光吸收系數K;
出現故障時自動顯示故障代碼;
附有自動時鐘顯示,內置打印機或藍牙、RS232接口)供選擇。

主要技術參數:
測量范圍        不透光度N:  0~100%
光吸收系數K:0~90.65m-1
示值誤差        ≤±2%
穩定性           自動校零,量矩漂移≤±1%/4h
分辨率           0.1%
響應時間        1S±0.1S
輸出方式        LED(4位)顯示,可附打印機,打印出5組急加速煙度、怠速煙度、光吸收系數的最大值及平

均值,測試時間、日期等,可附接口與計算機聯網
環境條件        溫度0~40℃,相對濕度≤90%
電       源        AC100-240V   50/60Hz 消耗功率150VA
外形尺寸        控制單元:250mm(長)×310mm(寬)×170mm(高)
測量單元:350mm(長)×260mm(寬)×170mm(高)
重       量       控制單元:4kg,
測量單元:5kg

Main Features:

◆Separated structural design, easy to operate, according to the new national standard GBl9758-2005 technical requirements for development.
◆With built-in full-flow sampling techniques, application-specific measurement of motorcycle hard phases of acceleration, idle condition when the smoke.
◆High-brightness digital display, import key components assembled.
◆Using a special full-flow high-temperature sampling probe, sampling a stable, accurate and convenient.
◆Ji machine warm-up time 10 minutes, and automatic zero adjustment.
◆Linear automatic data processing, can be displayed opacity degrees N, light absorption coefficient K.
◆Fails automatically displays fault code.
◆With automatic clock display, built-in printer (RS-232 or analog interface network) for selection.

Main technical parameters:

Test ScopeNo light transmission N:0100%

Light absorption coefficient K:0 ~ 90.65m-1

Indication error: ≤±2% ( measured value)

Stability:moment drift≤±1%/4H

Repeatability ≤±1%

The response time:1S +/-0.1S

Output LED ( 4 ) may be attached to the printer, display, print out 5 groups of sudden acceleration smoke, smoke, speed of light

absorption coefficient of maximum value and average value, test time, date, can interface with computer networking

The measurement chamber temperature:

70 ℃ (automatic), when the temperature error of ± 10%, temperature and error indicator light

And-use temperature: -5~50°C, Relative humidity: 90%

Power: AC100~240V 50/60Hz or DC12V, Power consumption: 150VA

Dimensions: control unit: 250(L)×310(W)×170 (H)mm

( including bracket) measuring unit: 350(L)×260(W)×170(H)mm

Control unit: 4kg

Measuring unit: 5kg
